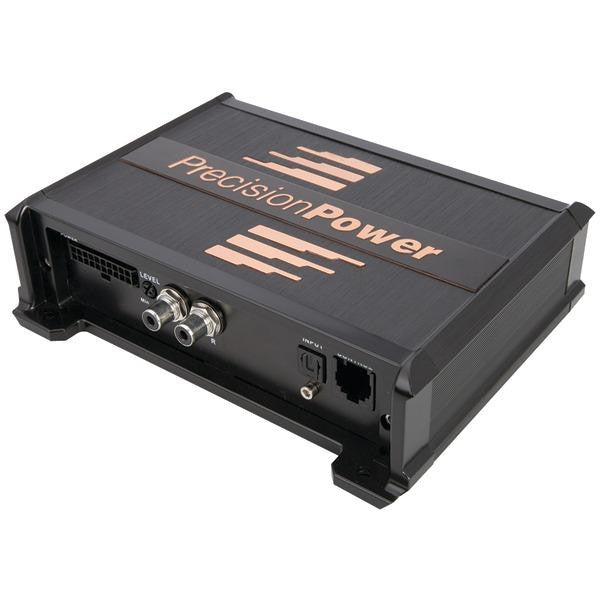

Precision Power Dsp-88r 31-band Digital Signal Processor & Equalizer
by Petra
Informational Listing
Informational Listing Notice
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
Looking to buy this product?
View this item on AmazonWe may earn a commission if you purchase through this link.
People Also Liked
Precision Power Dsp-88r 31-band Digital Signal Processor & Equalizer is a amplifiers equalizers & crossovers by Petra. See more in Products P.
Description:
User-friendly Diy Core 32 Bit/192khz Digital Signal Processor Powered By Cirrus Logic(r)
Streams Data Without Dsp Intervention With Dedicated 8-channel Dma Engine
Integrated Analog-to-digital Converter: 105db Dynamic Range, -98db Thd+n
Integrated Digital-to-analog Converter: 108db Dynamic Range, -98db Thd+n
Custom User-friendly Dsp Composer(tm) Graphic User Interface With Response Display
30v Max 4-channel High Level/speaker Level Input
8v Max Aux Rca Input Voltage
192khz S/pdif Optical Input
Optional High Level Input From Hands-free Bluetooth(r) Module
8-channel Low-level Rca Output
Optional Independent Input Or Channel Mixing/summing
Up To +12db -18db Master Input Level
Up To -40db Independent Channel Level Cut
Up To 16ms Independent Channel Delay In 0.05ms Increments
Independent Channel 0 /180 Phase Control
Independent Channel High Pass, Low Pass Or Band Pass Crossover
Selectable Independent Channel 6db - 48db/octave Crossover Slope
Variable Freq Crossover Setting: 20hz - 20khz
1/3 Octave/31-band Graphic Equalizer For Each Channel
+12db Boost/-18db Cut For Each Band
Variable Independent Band Q Adjustment, 0.5 - 9
Includes Dash-mount Remote Control For Input, Mode & Volume
Upc : 709483048140
Shipping Dimensions : 12.00in X 8.30in X 3.90in
Estimated Shipping Weight : 3.5
