Description:
102 XD Actuator

Used with Troll n Tab Kits 2000 to present & various OEM Applications
5/16" (.79 cm) mounting hardware

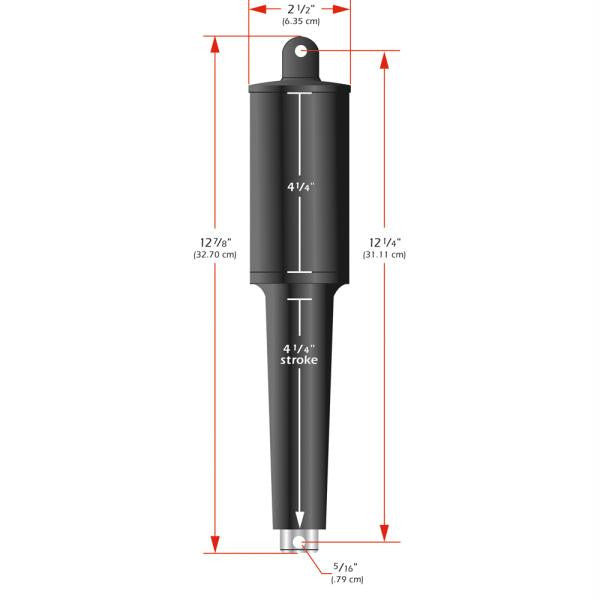

Stroke: 4-1/4" (10.8 cm)
Length overall: 12-7/8" (32.70 cm)
Length pin to pin: 12-1/4" (31.11 cm)
Diameter (upper housing): 2-1/2" (6.35 cm)
Mounting hardware: 5/16" (.79 cm) or Delrin Pin (Part #15087-001)

Part #
#15060-001 (102-2) 12 Volt w/6' (1.83m) leads with Deutsch connectors and mounting hardware(replacement length)

• Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing

• Corrosion proof Vandar mounts

• Stainless steel ram won't flex, even under extreme loads

• Double O-ring for maximum protection

• Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches

• Self-locking ballscrew locks into position and will not drift

• Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life

• Tough, high-torque motor easily transfers 750 lbs

• High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing

• Corrosion proof Vandar cap and mount, stands up to severe loads

Product : LENCO 12V 4 1/4" STROKE EXTREME DUTY ACTUATOR W/ 6'
Manufacturer : LENCO MARINE
Manufacturer Part No : 15060-001
UPC : 874847001250
