Barton Marine 03631 - Size 3 - Fiddle - Swivel, Becket & Cam Cleat Block | Compare Prices and Alternatives

Description:

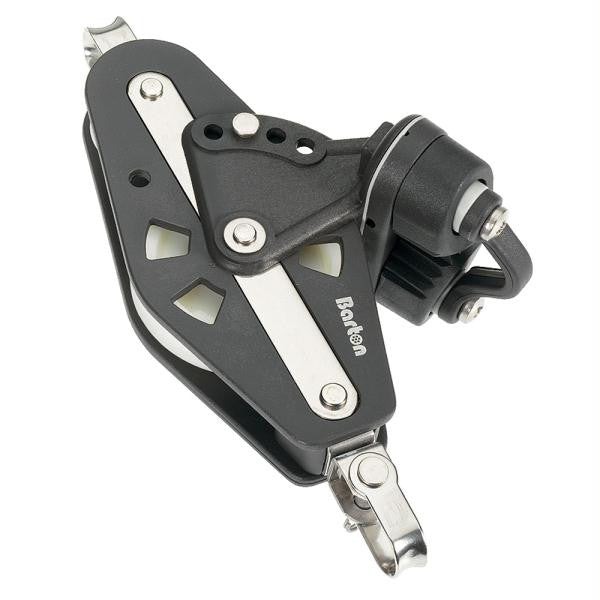

Series 3 45mm Block - Fiddle - Swivel + Becket + Cam Block

Swivel
Fully swivelling head with removable shackle.
Becket
A clevis forming part of one end of a sheave
Cam cleat blocks
Fitted with Kevlar "K" cams (unless otherwise stated). Cam arms are fully adjustable by moving the locking clevis pin to achieve the correct cleating angle. Used in conjunction with the relevant top block, this range of blocks is particularly useful for mainsheet, vang tackles or downhauls on dinghies, dayboats or light cruising yachts

A strong, lightweight range of blocks for use on dayboats and cruising yachts. Ideal for mainsheets, vang tackles, lead blocks or wherever a powerful and compact purchase tackle is required.
A comprehensive range of cam cleat, fiddle, and fiddle & cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:178mm(7.01")
Sheave Size:
Single: 45mm x 14mm (1-¾" x ³⁵⁄₆₄")
Fiddle: 30/58mm x 12mm (1-³⁄₁₆" /2-½"; x ³⁵⁄₆₄")
SWL: 385kg (848lbs)
Max Rope Diameter: 10mm (⅜")
Break Load:740kg (1,698lbs)
Product : BARTON MARINE SIZE 3 FIDDLE SWIVEL, CAM & BECKET BLOCK
Manufacturer : BARTON MARINE
Manufacturer Part No : 03 631
UPC : 5035088036318
