Furuno Smart Sensor DST-800MSF - Thru-Hull Transducer
by CWR
Informational Listing
Informational Listing Notice
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
Looking to buy this product?
View this item on AmazonWe may earn a commission if you purchase through this link.
People Also Liked
Furuno Smart Sensor DST-800MSF - Thru-Hull Transducer is a marine instruments by CWR. See more in Marine Instruments.
Description:

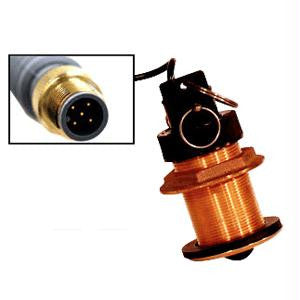

Furuno DST-800MSF - Airmar B617V Housing Style Transducer
The DST-800MSF offers depth, speed, and temperature in a single, 51mm (2") fitting. Only one hole through the hull simplifies the installation - an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer's wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-800MSF's reliable temperature sensor.
Standard Features:
Weight: 1.6kg (3.5lb)
Acoustic Window: Urethane
Hull Deadrise: Up to 22°
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 70M (230')
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6m
NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile
Product : FURUNO SMART SENDOR DST-800MSF T/H DST
Manufacturer : FURUNO
Manufacturer Part No : DST-800MSF
UPC : 611679330550
Furuno DST-800MSF - Airmar B617V Housing Style Transducer
The DST-800MSF offers depth, speed, and temperature in a single, 51mm (2") fitting. Only one hole through the hull simplifies the installation - an attractive feature for boat builders and boat owners alike. Patented, speed-signal-processing enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and smooth linear output at all vessel speeds. The transducer's wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats. You also get true water-temperature readings with the DST-800MSF's reliable temperature sensor.
Standard Features:
- Depth, speed, and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Weight: 1.6kg (3.5lb)
Acoustic Window: Urethane
Hull Deadrise: Up to 22°
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 70M (230')
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6m
NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile
Product : FURUNO SMART SENDOR DST-800MSF T/H DST
Manufacturer : FURUNO
Manufacturer Part No : DST-800MSF
UPC : 611679330550
