    Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof is a electrical by CWR. See more in Electrical.

    Description:

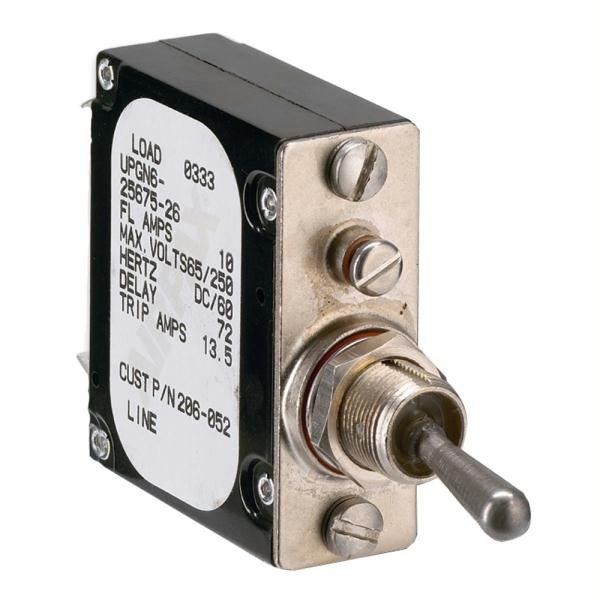

    Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers
    • Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
    • Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
    • UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
    • Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
    • Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

    Specifications :

    • Handle Color Metal with Silicon rubber seal
    • Maximum Amperage 50 Amps
    • Maximum Voltage /AIC 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
    • Rated Switch Cycles Rated Switch Cycles 10,000 actuations at rated current and voltage
    • Electrical Hardware Screw 10-32 x 3/8" pan combo head (P/N 197-188)
    • Mounting Hardware Hex nut 1/2-32 (supplied with circuit breaker)
    • Lockwasher 1/2" internal tooth (supplied with circuit breaker)
    • Optional Boot Black silicone rubber (P/N 048-015)
      Product : PANELTRONICS BREAKER 10 AMPS A-FRAME MAGNETIC WATERPROOF
      Manufacturer : PANELTRONICS
      Manufacturer Part No : 206-052S
      UPC : 602290201411
