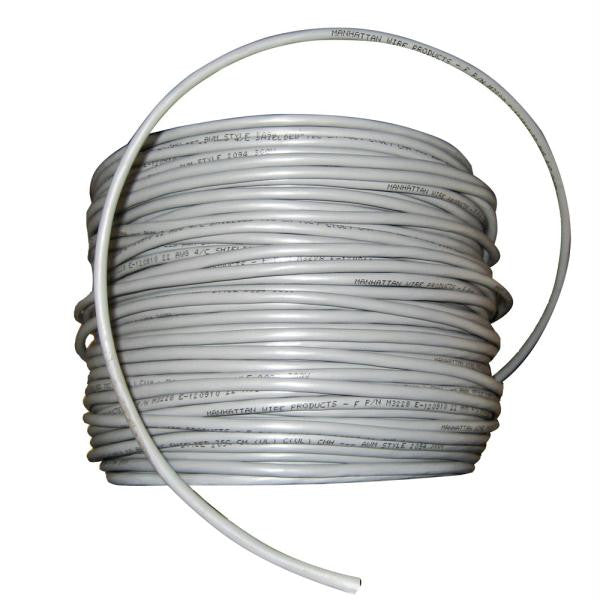

Cobra Wire 22-4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot - Grey
by CWR
Informational Listing
Informational Listing Notice
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
This product is a sample legacy item from our Loyalty Program Collection, provided in this Product Directory for reference and informational purposes only. It is not currently available in the Loyalty Program for purchase.
Looking to buy this product?
View this item on AmazonWe may earn a commission if you purchase through this link.
People Also Liked
Cobra Wire 22-4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot - Grey is a electrical by CWR. See more in Electrical.
Description:
22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
Electrical & Environmental Properties:
Mechanical Properties:
Product : COBRA WIRE 22/4 SHIELDED COMM CABLE - NMEA 0183 BY FOOT
Manufacturer : COBRA WIRE & CABLE
Manufacturer Part No : X-079330-007-FT
22/4 Shielded Comm Cable - NMEA 0183 - Cable By The Foot
NEC RATING: CMP, NEC Article 800
APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom Systems, Security Systems, Sound, Background Music)
Construction Parameters:
- Conductor 22 A WG Bare Copper
- Stranding 7 x 30
- Insulation Material Flex Plenum PVC
- Insulation Thickness 0.008" Nom.
- Number of Conductors: 4
- (2 Shielded) (2 Unshielded)
- Shield 100% Aluminum Polyester Foil
- Drain Stranded Tinned Copper
- Jacket Material Flex Plenum PVC
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.154" Nom.
- Approximate Cable Weight 19 lbs/1M' Nom.
- Flame Rating NFP A 262 Flame Test
Electrical & Environmental Properties:
- Temperature Rating -10°C To +60°C
- Operating Voltage 300 V RMS
- Max. Capacitance Between Conductors@ 1 KHz 55 pt/ft Nom.
- Capacitance Between Conductors to Shield@ 1 KHz 99 pt/ft Nom.
- DC Resistance per Conductor@ 20° C 17 Ohms/1M' Nom.
- Insulation Colors: Black, Red, White, Green
- Jacket Color: Grey
- RoHS Compliant Yes
Mechanical Properties:
- Max. Recommended Pull Tension 51lbs
- Min. Bend Radius (Install) 1.6"
Product : COBRA WIRE 22/4 SHIELDED COMM CABLE - NMEA 0183 BY FOOT
Manufacturer : COBRA WIRE & CABLE
Manufacturer Part No : X-079330-007-FT
