    Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position is a electrical by CWR. See more in Electrical.

    Description:

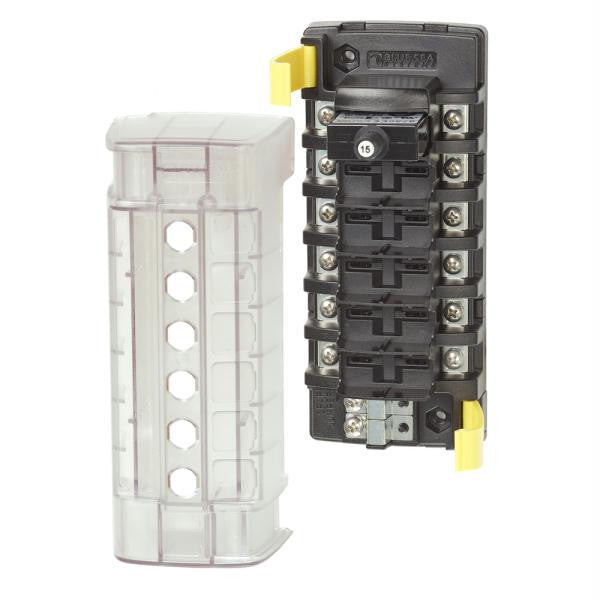

    ST CLB Circuit Breaker Block - 6 Position

    <B>Features
    • Quick connect clips allow circuit breakers to snap easily into place
    • Tin-plated copper busses and screw terminals
    • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
    • Easy to open clip on cover
    • Breakouts allow wire access in two directions
    • Accepts ring terminals
    • Optional push button waterproof boots or dress nuts can be installed over cover


    Specifications:
    Circuits:6
    Maximum Amperage:32A (per circuit) 40A (per jumped circuit group)
    Maximum Voltage:32V DC
    Mounting:#8 Screw (M4) or #8 Nut
    Source:Independent SourceMinimum Operating Temperature:-10° C
    Maximum Operating Temperature:60° C
    Mounting Centers:5.63"(143 mm)
    Screw Terminal Type:#8-32 Screws with Captive Star Lock Washer
    Height:6.69"(169.93 mm)
    Weight:0.75lb (0.34 kg)
    Product : BLUE SEA 5050 ST CLB CIRCUIT BREAKER BLOCK 6 POSITION
    Manufacturer : BLUE SEA SYSTEMS
    Manufacturer Part No : 5050
    UPC : 632085050504
